Software upgrade
Build
a folder name as UPG under root menu of USB device.
Copy the HTB5580.bin file(upgrade file) to the root menu of USB device.
Connect the USB device to HTS ,
Copy the HTB5580.bin file(upgrade file) to the root menu of USB device.
Connect the USB device to HTS ,
Power
on DUT,enter into HOME UI.
Enter into Setup menu select Advance >>Software upgrade>>USB. If the upgrade SW was found, it will prompt start upgrade SW, press OK select Start.
Don’t power off DUT .DUT will restart after SW upgrade completed.
Caution: The set must not be power off during upgrading, Otherwise the Main board will be damaged entirely.
Enter into Setup menu select Advance >>Software upgrade>>USB. If the upgrade SW was found, it will prompt start upgrade SW, press OK select Start.
Don’t power off DUT .DUT will restart after SW upgrade completed.
Caution: The set must not be power off during upgrading, Otherwise the Main board will be damaged entirely.
Software version check
Power
on DUT, enter into home ui,
Select set up >> advance >> version information
The main software is System SW,MCU version is Subsystem SW.
Select set up >> advance >> version information
The main software is System SW,MCU version is Subsystem SW.
Restore DUT
Power
on DUT,enter into HOME UI
Select set up >> advance >> Restore default settings
Select set up >> advance >> Restore default settings

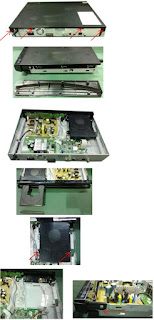

Disassembly procedure.
Open
the top cover. Remove 4 screws on the back panel, dismantle the left and right
baffle, then open the top cover.
Dismantle
the loader. Open the CD tray and dismantle the CD door. Disconnect the
connectors on the main board. Remove 2 screws beside the loader.
Dismantle the front panel.Release the WI-FI module from the panel.
Disconnect all the connectors.Release 4 buckles on the left,right and bottom sides.
Dismantle
the front control board. Remove 4 screws on the board. Loosen the board and
disconnect
2 connectors on the inner side of the board, then pull out the board.
2 connectors on the inner side of the board, then pull out the board.
Dismantle
the power board. Remove 4 screws and 1 plane interpolation on the board.
Dismantle
the amplifier board. Remove 2 screws on the board and 1 screw on the back
panel.
Dismantle the main board. Remove 2 screws on the board and 3 screws on the back panel.
Dismantle the main board. Remove 2 screws on the board and 3 screws on the back panel.
Mechanical and Dismantling
Open
the top cover. Remove 2 screws on the back panel. then open the cover.
Dismantle
the front panel. Disconnect all the connectors on the boards. Release 4 buckles
on the left, right and bottom sides.
how
to dismantle the wireless box
Dismantle
the power board. Remove 3 screws on the board and 2 screws on the back panel.
Mechanical and Dismantling Instructions
Dismantle the power board. Remove 3 screws on the board and 2 screws on the back panel.
Mechanical and Dismantling Instructions
Dismantle the power board. Remove 3 screws on the board and 2 screws on the back panel.
Dismantle the main board. Remove 2 screws on the board and 1 screw on
the back panel.
Power board schematic
Power board schematic for wireless box
