MT56-AP
chassis are designed for Asia & Pacific (AP) market Ready for Smart TV. It features
by its high integration, easy debugging (ADC adjustment free) as well as convenience
in terms of maintenance. Fast software upgrade through USB disk facilitates
both manufacture and after-sale service. Meantime, a variety of functions involved
in Factory Main Menu can not only bring benefits for production, but also satisfy
various demands of customers.
[Factory
Main Menu (FMM) is divided into Factory menu and Design menu. Factory Menu
covers all indispensable functions during manufacture such as White Balance Adjustment,
SHOP etc., while Design Menu includes Service Menu, Hotel Menu, Param Setting,
Other Setting etc. Some settings like Param Setting and Other Setting is
exclusively used by R&D engineer, anyone else shouldn’t change the settings
in the menu. When you wish to learn the product information like project ID,
project name, Hardware, software version, release date, you can access to
Service Menu. In addition, in Hotel Menu,
also provide a great deal of useful functions for specific applications
in hotel.]
The
software boot for U702 can be programmed by Flash Tool.exe.
Every set has its unique HDCP key which
is purchased from suppliers or HDCP
certification authority. Please check HDCP function in the process of
production.
Once in a while, the software of main
board may be upgraded. Please pay attention to use the latest software before
production.
Factory Menu
Factory Menu is mainly used for factory production and satisfies various
demands of customers. It covers all indispensable functions during manufacture
such as Warm up, White Balance, Shop, NVM Reset,Power on mode, USB Clone etc.
Accessing Way
a. When the Factory hotkey item of Factory Menu is disabled (OFF), press Menu
button of remote control, then select Settings/Picture, make sure the cursor
stop on Contrast item submenu. Finally, press 9, 7, 3, 5 consecutively.
b. When the Factory hotkey item of Factory Menu is enabled (ON, you can see the
flashing Factory Captions Info on the lower left corner), press Back button of
remote control.
Press
RCU “OK” key to enter the submenu.
Press RCU “Right” or “Left” key to change the values.
Press RCU “Right” or “Left” key run the function.
Press RCU “Back” or “Menu” key exit the Factory menu.
Factory Captions Info
While “FactoryKey” is enabled, there is some toggled display information
relative to MV, SV, ID, MID, to facilitate 100% quick screening without
accessing to whatever else menu:
P
(Production/Factory mode flag)
MV (Mboot SW Version)
SV (Main SW Version)
ID (Project ID)
MEMC
Design Menu
Design Menu includes Factory Menu, other, Service Menu, Param Setting, Hotel
Menu.
Some settings like Param Setting and Other Menu is exclusively used by R&D
engineer, anyone else shouldn’t change the settings in the menu. When you wish
to learn the product information like project ID, project name, chassis name,
software version, release date, you can access to Service Menu. In addition, in
Hotel
Menu, we also provide a great deal of useful functions for specific
applications in hotel.
Accessing Way
a. When the Design mode hotkey item is disabled(OFF), press Menu button of
remote control, then select Settings/ Picture, make sure the cursor stop on
Contrast item
submenu, press 1, 9, 5, 0 consecutively.
b. When the Design mode hotkey item of Design Menu is enabled (ON, you can see
the flashing Factory Captions Info on the lower left corner), press Back button
of remote control.
Press RCU OK key to enter the submenu.
Press RCU Right/Left key to change the values.
Press RCU Right/Left key run the function.
Press RCU Back/Menu key exit the Factory menu.
Design Captions Information is the same to Factory Captions Info.
Other Menu
The Other Menu contains some TV basic information, with which we can check the
TV setting before production.
Service
Menu
Service Menu contains some basic information of the device, such as Project ID,
Hardware, Software version, USB Update etc. This menu is especially useful for
after-sale service.
Param Setting Menu
Param Setting menu contains Sound Setting, Picture Curve, Picture Setting, SSC,
DBC, CI Card, Overscan, WIFI CHECK and USB FILE. But it is exclusively used by
R&D engineer, anyone else shouldn’t change the settings in the menu.
Test
& Alignment
According to the requirement of order, we suggest take the below steps to
finish the appropriate settings.
Note:
All tests and measurements mentioned hereafter have to be carried out at a
normal mains voltage (100 ~ 240 VAC)
All voltages have to be measured with respect to ground, unless otherwise
stated
All
final tests have to be done on a complete set including LCD panel in a room
with temperature of 25+/-7°C.
The
Picture Performance assessment such as White Balance (luminance and colour
temperature) has to be performed into subdued lighted room after at least 60min
of warm-up in order to avoid any temperature drift influence (colorimetry vs
time).
Pre-Conditions and Power Supply Check
Before power-on, please check the board according to the relevant block diagram
and circuit diagram, make sure that no serious issue or mistake can destroy the
board. For example, the output of DC/DC and LDO should not be shorted to
ground.
Supply a suited voltage and power-on, then check the voltage according to the
relevant block diagram, circuit diagram and voltage spec, the error should be
less than 5%, for example, the voltage for main chip (+3V3, +2.5V, VDDC1V15,
1V5_DDR, etc.), the voltage for TUNER (TU_3V3), the voltage for amplifier (AMP_VCC),
etc.
Project ID Modification
There are different ID stored in the EMMC depending on different Panels
settings and Model features, but there’s only one key branching Project ID able
to ensure normal display. And when you power on the TV set, you should make
sure the Project ID is accord with the BOM description. If not, you need to
modify the ID. There are two methods to modify the ID:
Change Project ID in Design Menu
In case of “Design mode hotkey” is enabled, press “Back” button to enter Design
Menu. To modify Project ID, you need to go through “Service menuàProject ID”, then press Left or Right
key to select suitable ID (Project name is dynamically refreshed). Finally
restart the TV set.
In case of “Design mode hotkey” is unabled, you can enter the Design Menu
easily with reference to Design Menu.
Change Project ID with RCU
Press “062598”+”Menu”+”XXX” (XXX represents project ID you’d like to switch to)
in the remote control and wait about half minutes, When the set restart
automatically, you have successfully changed project ID. below is none
exhaustive ProjectID table for reference.
Function Test
Once the Project ID is correct and the TV display normally, plug all external
generator devices to relevant inputs/outputs according to their respective test
patterns format and check picture content and sound quality accordingly.
LAN/WLAN
Test
MAC Address Upgrade
Upgrading MAC address needs to use the tool in factory and through serial
command. The specific method is according to the operation of the factory
guidance.
DeviceID (DID) and UserID (UID)
Purpose is to allow Other Network Download (OND) and further specific services
over dedicated portal based on AP. For such, specific DID (32 bytes) and UID (8
bytes) needs to be paired and overwritten into memory for internal client
encryption,as below.
Those
DID/UID codes can only be set using UART commands following enclosed SIACP
requirements.
LAN Test
A rough LAN test can be done by connecting Ethernet to TV’s RJ45 and check that
IP, subnet mask, DNS addresses, which are visible on HomeàSettingsàNetworkàEthernet settingsàIP settings” (ensure that “Internet
Connection” is Enabled at first). More in-depth test can be performed faster
using suitable UART/IR commands following SIACP requirements. SW will
internally manage Network ID (NID) flag controlling all MAC/DID/UID integrity
to facilitate PA screening further.
Shop init
At final process stage, it’s necessary to perform Shop init before any packing
to leave Factory mode and restore User default presets according to the
requirement of order.
This function is accessible by selecting “Factory MenuàShop”, then pressing RCU “Right ”or”
Left” key.
Other faster methods are available on above enclosed SIACP requirements.
Warm-up Test
Following TCL standard and practices, it’s required minimum 15min of Warm-Up
that can be considered as Burn-In. Additional aging for White Balance alignment
is no more necessary due to consistent picture performance with cloning usage.
This function is accessible by selecting “Factory menu àWarm up”, pressing RCU “Right” or
”Left” key to set it ON, and then it enter in Warm up mode. Press “Menu” key on
keyboard to exit the burning mode. Other faster methods are available on above
enclosed SIACP requirements.

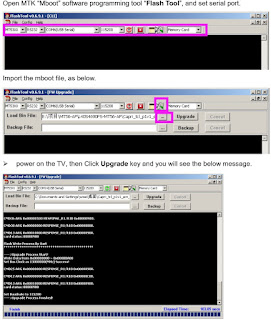

How to upgrade Mboot
Connect the computer and mainboard VGA port by a serial port tool.
Serial connector definition: VGA/P303: Pin4: RXD VGA Pin11:TXD fig-5
How to upgrade FLASH Software
1. USB Upgrade
Download the update file (generally named V8-MT56551-LF1VXXX.pkg) to the root
directory of your USB device, and make sure there’s no other bin file named
analogously. Then insert the USB device to USB interface of TV set.
Power on the TV set, Press and hold on the menu key of key board at the same
time. If the TV is updating, you’ll see the below screen.
Upgrade
process takes about 3~5 minutes.
After updating, the TV set will reset automatically.
Online Upgrade
Download the bin zip file “V8-MT56551-LF1VXXX.Zip” to the root directory of
your USB device, and do not change the file name. Then insert the USB device to
USB interface of TV set.
Press RCU Menu/Settings/Picture/Contrast/1,9,5,0/Service menu/USB Update /Main Upgrade/Local
Update . If the upgrade file is found, TV will give a message that it
verifying. TV displays a warning message, it means selecting “confirm” to
continue or “cancel” to exit. During updating, do not power off the TV set.
After updating, the TV set will reset automatically.
Network Connection
You can set up your TV so that it can access the Internet through your local
area network (LAN) using a wired or wireless connection.
Connect to a wired network
Attach the TV set to your LAN using cable in three ways:
Connecting the LAN port on the TV to an external modem using a Cat 5 cable.
Connecting the LAN port on the TV to an IP Sharer which is connected to an
external modem. Use Cat 5 cable for the connection.
Depending on how your network is configured, you may be able to attach the TV
to your LAN by connecting the LAN port on your TV directly to a network wall
outlet using a network cable. Note that the wall outlet is attached to a modem
or router anywhere in your house. Select Home→ Settings→ Network → Ethernet Settings→IP
Settings, then the TV will obtain IP address Automatic configuration. In
addition, you can set the IP address and password manually.
Connecting to a wireless network
To connect the TV set to your network wirelessly, you need a wireless router or
modem and a Wireless LAN Adapter.
If the TV set is equiped with an internal WiFi module, select Home→ Settings→
Network→ Wireless Settings, then turn on Wireless Switch, select a wireless
network and press OK to connect.
If you want to connect the TV set to a wireless network by a Wireless High Gain
USB Adapter (USB dongle), select Home→ Settings→ Network→ Wireless Settings,
then turn on Wireless Switch and External WiFi, and select a wireless network
and press OK to connect.
White Balance (WB) Adjustment
The White Balance generally is customized by PQ engineer, and uploaded to the
PDM system, anyone else shouldn’t change the value in the menu. If it is
necessary to adjust, the following content can offer some reference, but the
process of adjusting White Balance is out of the range of this file. Please
refer to the relevant technical file of HuiZhou factory of TCL.
White
balance adjustment takes the Normal color temperature of HDMI channel as the
reference.
Warm and Cold tone is relative to Normal mode. The adjustable gain range is
0~255.
The Normal color temperature of other channel is relative to the Normal mode of
HDMI channel. The adjustable gain range is also 0~255.
The manual adjustment is according to the regulation above. Additionally, when
manually adjust, it needs to do White Balance in it first.
Take signal generator 22293 as an example, the timing value and pattern value
of each source.
Note:
1)
The input signal is 80% white when the pattern value of 22293 is 103.
2) The adjustment of White Balance should fulfill TCL matching specification.
SMPS schematic
